8 Port Sensor Controlled Relay

Respond to changing conditions through a compatible AKCP monitoring unit. Use sensor-driven actions, the host’s web interface or SNMP commands to control connected equipment.

8 port sensor controlled relay
Mini relay icon

Eight Relay Outputs

Use one sensor port RJ45 for 5 dry contact inputs

thermometer

Sensor Actions

Trigger relays with sensor driven actions based on sensor status

Status LEDs Icon

LED Relay Status

Individual LED’s indicate relay open or closed status

scaling icon

Web Monitoring

Monitor through web and SNMP over LAN or WAN

Respond to changing conditions

From monitoring to action

Connect the condition you detect with the response you need

process control

Process & Energy Management

Use relay switching as part of a suitable process-control or energy-management system.

Alarm Activation

Activate a connected alarm when the monitoring system detects a condition that needs attention.

cooling status

Cooling Control

Use relay switching as part of a suitable process-control or energy-management system.

How It Works

From a sensor change to a relay action

The monitoring unit provides network connection and control interface

sensor collection

1. Sensor Condition

Connect to monitoring unit

2. Monitoring Unit

8 port sensor controlled relay

3. 8 Port Relay

equipment response

4. Equipment Response

8PR relay concept

Three Connections For Each Relay

Each output provides Normally Open (NO), Normally Closed (NC) and Common (COM) terminals. Use the approved product documentation for the physical terminal layout and wiring.

Illustration shows contact function only; it is not a wiring instruction.

The 8 Port Relay is specially designed multiport relay for advanced process control. The 8 Port Relay is easily controlled by any of AKCP’s extensive selection of sensors. The relay can provide automatic responses to sensor status changes. Setting up the sensor controlled relay is easy with its built in autosense feature and user friendly web interface.

The 8 Port Sensor Relay can be controlled via the integrated web interface on the securityProbe, or the sensorProbe+. In addition, the relay can also be controlled via external computers using the included snmp command line utilities either interactively or programmatically.

The automatic response to sensor changes gives users more flexibility in responding to the environmental alerts. Automatic response eliminates the need for the user intervention during the alarm condition, preventing substantial damages by for instance switching on/off crucial equipment.

  • Power Switching
  • On/Off Control for cooling equipment
  • Activating Alarms
  • Process Control
  • Energy Management Systems
  • Relay designed to control switching application over IP through AKCP securityProbe
  • PCB, Connector and Contacts rated up to maximum 5A 30 VDC, 1A 220 VAC
  • Operates from a single +5 V DC Power Supply from the securityProbe, or additional 7.5VDC adapter
  • Provide 3 positions Terminal Block which includes Normally Open, Normally Close and Common
  • LEDs indicating the status of the Relay and Power Supply
  • Up to 64 (8 relays per RJ45) Relays per securityProbe
  • Full auto-sense including disconnect alarm
  • Contact Material AgCdO
  • Carry Current 16 A
  • Max. Operating Voltage 380 VAC, 125 VDC
  • Max. Operating Current 16 A
  • Max. Switching Capacity 4,000 VA,
  • 480W with Resistive Load 2,000 VA, 240W with Inductive Load (P.F=0.4)
  • Power Consumption: Typical 2475.00 mWatt, 495.00 mA
ConnectorConnector and Contacts rated up to maximum 5A @ 30 VDC, 5A @ 220 VAC
3 pin Phoenix Connectors : NO, NC, COM
Relay RatingsContact Material AgCdO
Max. Operating Voltage 250 VAC
Max. Operating Current 10 Amps
Relay Contact Max. Switching Capacity
  + 16A@250VAC with Resistive Load,
  + 8A@250VAC with Inductive Load (P.F=0.4)
Status IndicationLEDs indicating the status of each Relay and Power Supply
Operating Temperature-40°C to 70°C
Storage Temperature-40°C to 70°C
EnduranceMax. Switching Rate:
 + 18,000ops./ min. (no load).
 + 1,800ops./ min. (rated load).
Expected Mechanical Life: 20 million ops (no load).
Expected Electrical Life: 100,000 ops (rated load).

Interface
Communications cableRJ-45 jack to sensor using UTP CAT5e/6 cable
Power source 7.5VDC 3A (optional, needed if there are more than 1 relay being used)
Power ConsumptionTypical 2475.00 mWatt, 495.00 mA
Maximum Cable LengthThe 8 Sensor Controlled Relay can be extended from the RJ-45 Intelligent Sensor ports on the base units up to 50 feet, or 15 meters using standard CAT5/6 LAN cable

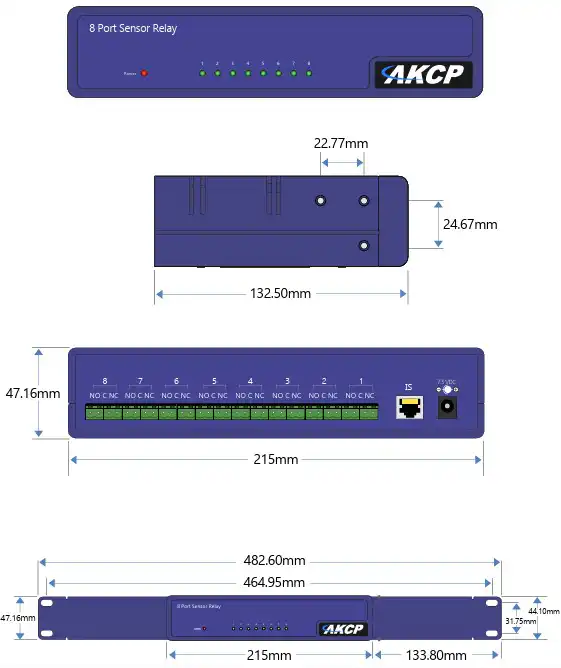

Dimensions10.83″ x 5.43″ x 1.80″
Sensor count8
