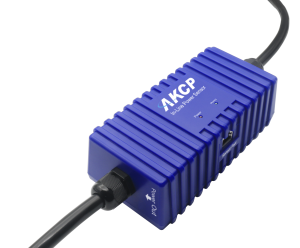

In Line Power Meter
Inline Power Meter is essential for:
- Checking how close you are to tripping your circuit breaker
- Ensure sufficient power overhead before adding new equipment to a circuit
- Billing individual clients in co-located services
- Monitoring up to 16 In-Line Power Meters from a single sensorProbe+

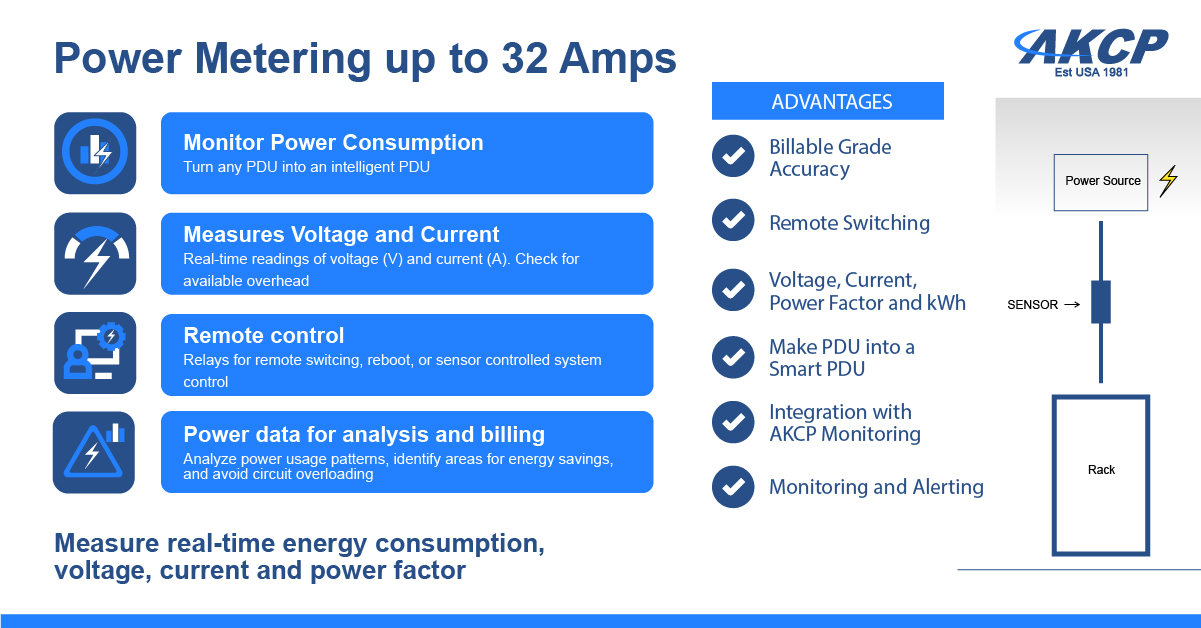

Monitor Power of your IT racks, make any PDU into an intelligent PDU
Advantages
Removing the controller from your power strip allows you to use a low cost basic power strip. This gives several advantages, in addition to the cost savings.
- A single IP address to monitor multiple cabinets.
- Hot swappable controller, no downtime to cabinets if servicing is needed
- More space for outlets on your power strip as the controller is moved out of the 0U space
- As future needs increase, just change the power strip no need for new controller and power meter.
In Line Power Meter Features
- Monitor and switch an individual Appliance
- Monitor complete Power Strip, turn a power strip into a smart PDU
- Graph power, voltage, current parameters.
- Receive alerts if electrical parameters exceed your pre-defined thresholds
- Shutdown power automatically if over voltage, over current, or smoke detected
- Optional Thermal Map for complete rack monitoring
- Optional Smoke Detector for Patent Pending Fire Suppression
- Optional LCD Display
- Bare end wires as standard or optional plug
- 100-250 AVAC Input
| Power Rating | 1phase 100-250VAC 16-32Amps |
Power Measurements | – Voltage (V) – Active Power (kW) – Leakage current (A) – Current (A) – Total Active Energy (kWh) – Power Factor |
Environment Monitoring | Optional Cabinet Thermal Map (-CTM or -CTHM) – Temperature sensor *range -40°C to +75°C – Humidity sensor * 0 to 100% Relative humidity |
Control | |
Switching Relay | Latched Relay Contacts rating : 40 Amp Mechanical Life : 1 10^7 times Electrical Life : 3 10^4 times Class B |
Status Indication | LED indication for power LED Relay status (with optional relay) |
Inputs | 1x sensor RJ45 Port Hardwired with following plugs : – IEC 60320 C20 – IEC 60320 C14 – Nema 5-15P – Nema 5-20P – Nema 5-30P – Nema L5-15P – Nema L5-20P – Nema L5-30P – UK BS – Shuko CEE 7/7 plug – IEC60309 2P+E blue |
Outputs | Outlet types : – IEC 60320 C13 – IEC 60320 C19 – Nema 5-15R – Nema 5-20R – Nema 5-30R – Nema L5-20R – Nema L5-30R – UK BS1363 – Shuko CEE 7/3 Socket – IEC 60309 2P+E Blue |
Interface | |
Communications cable | RJ-45 jack to sensor using UTP CAT5e/6 cable |
Maximum Cable Length | Peak 1.75 Watt, 350 mA Run length is 32 feet (10 meters) with approved low capacitance shielded cable or UTP |
Operating Environment | Temperature : Min. -35° C – Max.80° C Humidity: Min. 20% – Max. 80% (Non-Condensing) |
MTBF | 1,400,000 Hours based on field experience with sensorProbe units. |
Important Note | sensorProbe+ units auto detects the presence of the ILPM sensor – The ILPM sensor is only compatible with the sensorProbe+ platform units. – When plugging the first time or after upgrading a sensorProbe+ unit, the sensor’s firmware might be upgraded by the unit and not be available right away. – On the sensorProbeX+, the sensor can be used only on the main module sensor ports |
Sensor count | ILPM : 5 ILPM-LR : 6 CTM : +9 CTHM : +11 |
