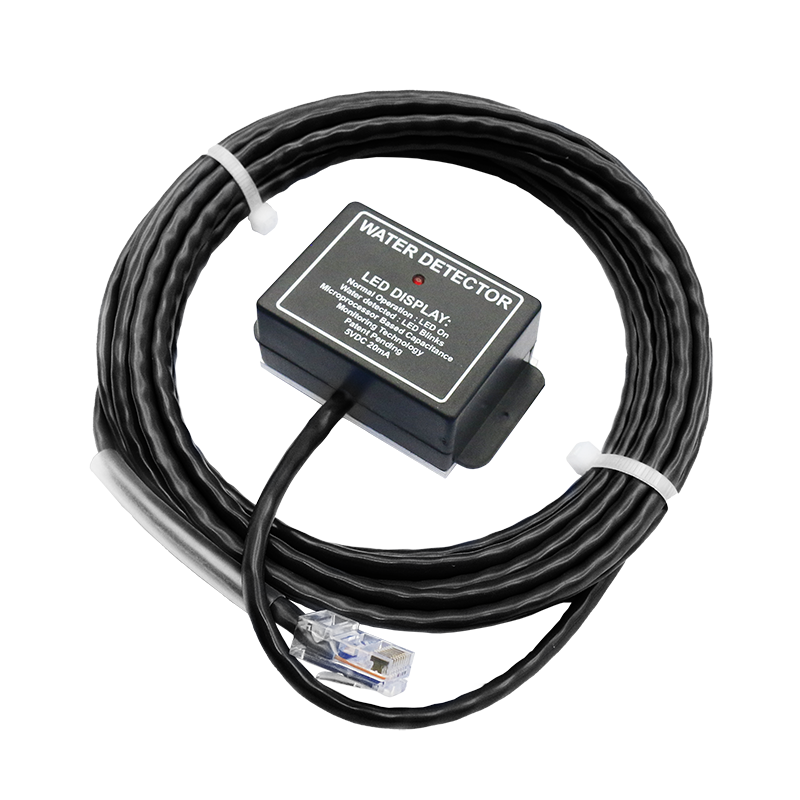

Spot Water Sensor

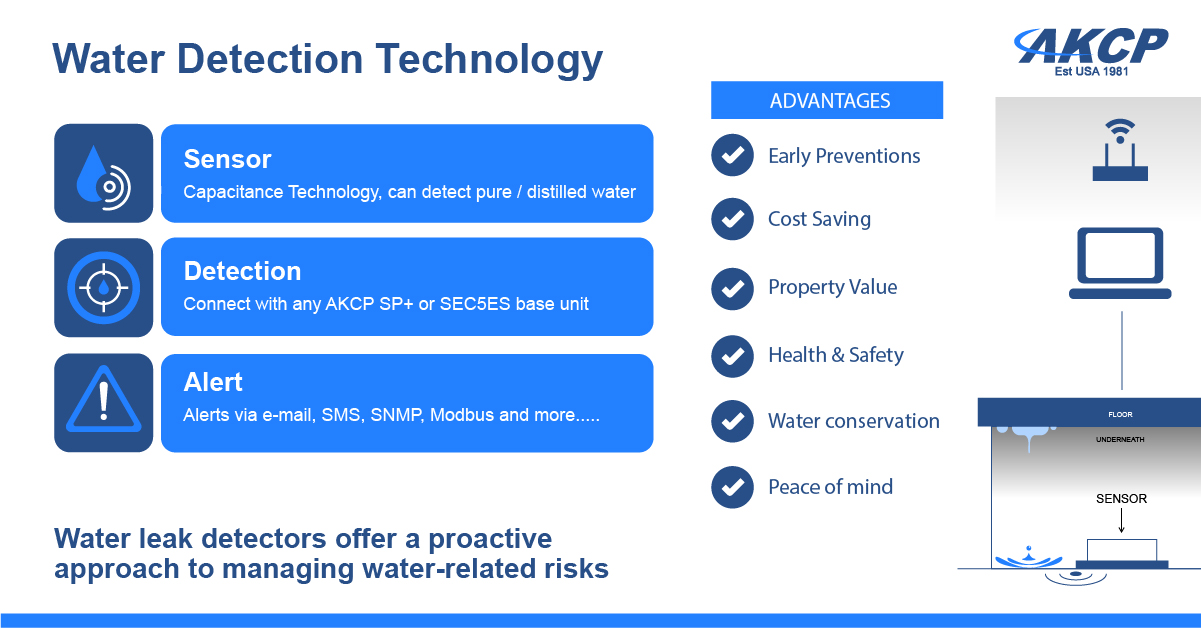

The Spot Water Sensor is an advanced microprocessor based design capable of detecting distilled water. Many water sensors work by detecting a drop in resistance when water bridges two electrodes. Since distilled water doesn’t readily conduct electricity, these sensors fail to register its presence. These resistance types rely on electrolytes present in the water, therefore being unable to detect distilled water due to it’s high resistance.
The entire circuit is encased in epoxy giving it a waterproof finish. The sensor is able to withstand being submerged in water for prolonged periods. The sensor has an SNMP OID for monitoring across a network, and will therefore report its critical condition at anytime before returning to its normal state.
Notifications
Notifications can be sent to you via SNMP traps, or E-mail (sensorProbe base units) or using any of the wide range of alerts available on AKCP base units.
- Detect presence of water
- Works with securityProbe and sensorProbe+ series base units
- Powered by the base unit, no additional power necessary
- Maximum cable extension of 150m (500ft)
- Even detects the presence of distilled water
Spot Water Sensor Accessory

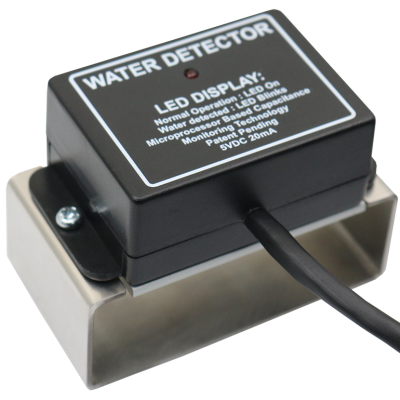

The water sensor stand allows you to position the spot water detector either 12mm or 24mm above floor level. This means you can place the sensor in areas that are expected to be wet, such as a drip tray, but only alert when water level reaches the 12mm or 24mm height.
This accessory is made in stainless steel and can be installed in permanently damp environments without rusting.
| Measurement Range | Wet or Dry |
| Sensor Type | Open/Closed contact input switch |
| Patent pending, microprocessor controlled, capacitance measurement technology. Able to measure distilled water | |
| Measurement Rate | Multiple readings every second |
| Indication | LED for Status |
| Operating Temperature | -20 °C~60 °C 4 °F~140 °F |
| Interface | |
| Communications Cable | RJ-45 jack to sensor using UTP Cat 5 wire |
| Communications Cable Max. length | The Spot Water Sensor can be extended from the RJ-45 Intelligent Sensor ports on the base units up to 500 feet, or 150 meters using standard CAT5/6 LAN cable |
| Power Source | Powered by the controller unit. No additional power needed |
| Full autosense including disconnect alarm | |
| Power Consumption | Typical 65 mWatt, 13mA |
| Dimensions | 55(W) x 39(H) x 27(D) mm |
| Mounting | Screw mounting |
| Important Note | AKCP does not recommend the spotWater Sensor to be placed on a conductive surface. If this is required, add the Insulation Coating P/N : WSIC to each spotWater Sensor ordered |
| Sensor count | 1 |
